Plastic HDPE PE Pp Pipe Extrusion Line Ppr Pipe Extrusion Line

Plastic HDPE PE PP PPR Materials Pipe Extrusion Line Machine Professional

This machine could produce HDPE PE PP PPR pipe directly,the pipe is mainly used for water / gas supply, and sewage and drain pipe, also undergroud pipes.

Flow chart of the PE pipe line

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

→ color code extruder → mould and calibrator → vacuum forming machine → cooling tank

→ haul-off machine → cutting machine → discharging rack

Characteristics

• Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h

• Diameter: from 16 to 800mm

• Adopts reasonable design, absorbing safe producing technology, acquiring CE&ISO certificate

Professional HDPE PE PP PPR Materials Pipe Extrusion Machine / Production Line Machinery Specification:

All the HDPE pipe production line:

1. Automatic Feeder and drying hopper

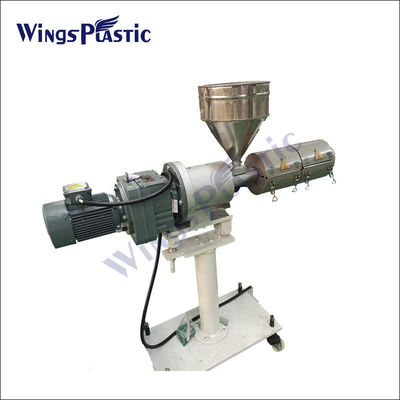

2. Single Screw Extruder

3. HDPE PIPE molds (SDR11,SDR17)

4. Vacuum sizing tank

5. spray cooling tank

6. Heating printer with all letter blocks

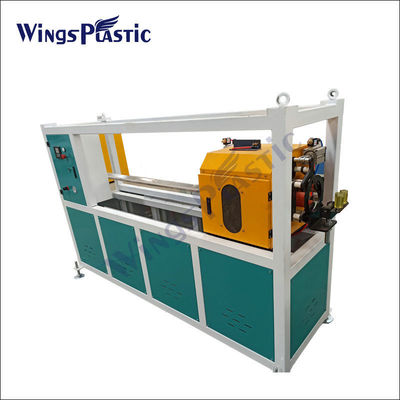

7. Belt haul-off unit

8. Non scrap Cutting unit:

9. Stack unit

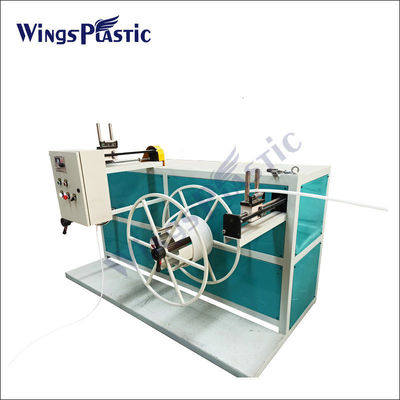

10. Winder / Stacker

11. Electric Control Cabinet

HDPE PE PP PPR Materials Pipe Extrusion Machine Pictures:

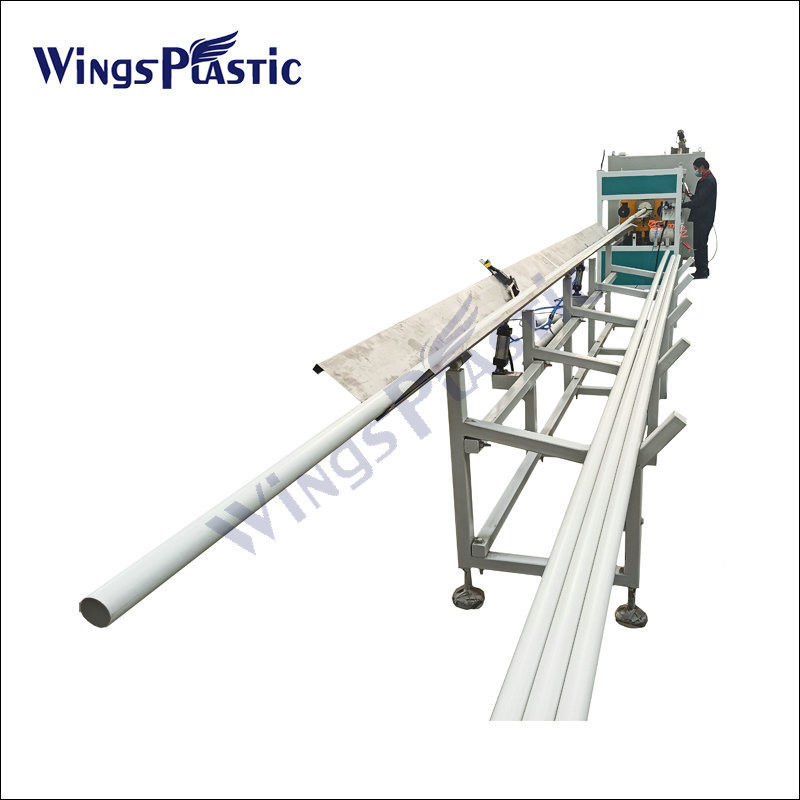

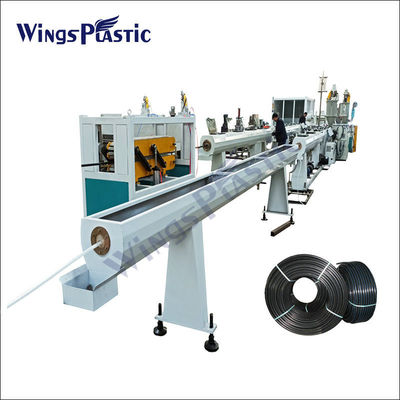

HDPE Pipe Making machine/extrusion line Pictures:
