20 -110mm Plastic HDPE Extrusion Machine PE Pipe Single Screw Extrusion Pipe Machine

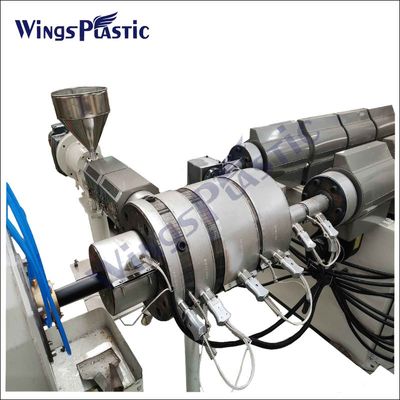

SJ65 series 20-110mm HDPE PE Pipe Extruder With Single Screw Design is mainly composed of barrel screw,momentum driving system,heating,cooling,and electric controllers etc.

20-110mm HDPE PE Pipe Extruder With Single Screw Design mainly used in plasticizing and extruding of PVC,PE,PP,ABS,PS,PET pipes,plates,sheets,film,profiles,granulates and other plastic products.

1.PE pipe single screw extruder machine can be produced split film or flat yarn with 100% polypropylene recycled plastic granules,new material is better.

2.PE pipe single screw extruder machine is mainly used in plasticizing and extrding of pp,pe, hdpe,ldpe pipes products.

3.PE pipe single screw extruder makes pe pipe, range from 20 to 110mm.

4.PE pipe single screw extruder machine is mainly used to product pe water pipe,gas pipe,drain pipe.

General Description of 20-110mm HDPE PE Pipe Extruder With Single Screw Design :

1.Pipe Diameter: 20-110mm

2.Capacity: 120-200kg/h

3.Raw Powder:PE powder

4.Screw and Barrel:38CrMoA1A,Nitrogen Treatment

5.Electrical Brand:SIMONS,OMRON,DELIXI,ABB,SCHNEIDER and so on,per customer requirement

Process Flow for 20-110mm HDPE PE Pipe Extruder With Single Screw Design:

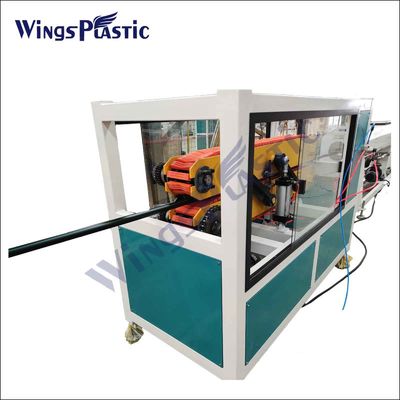

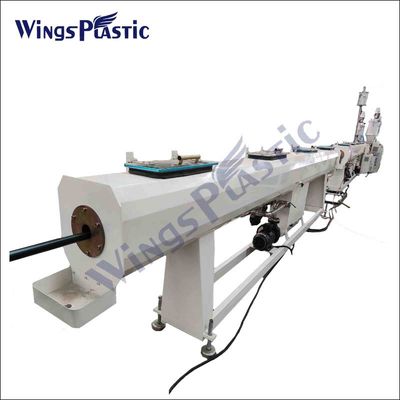

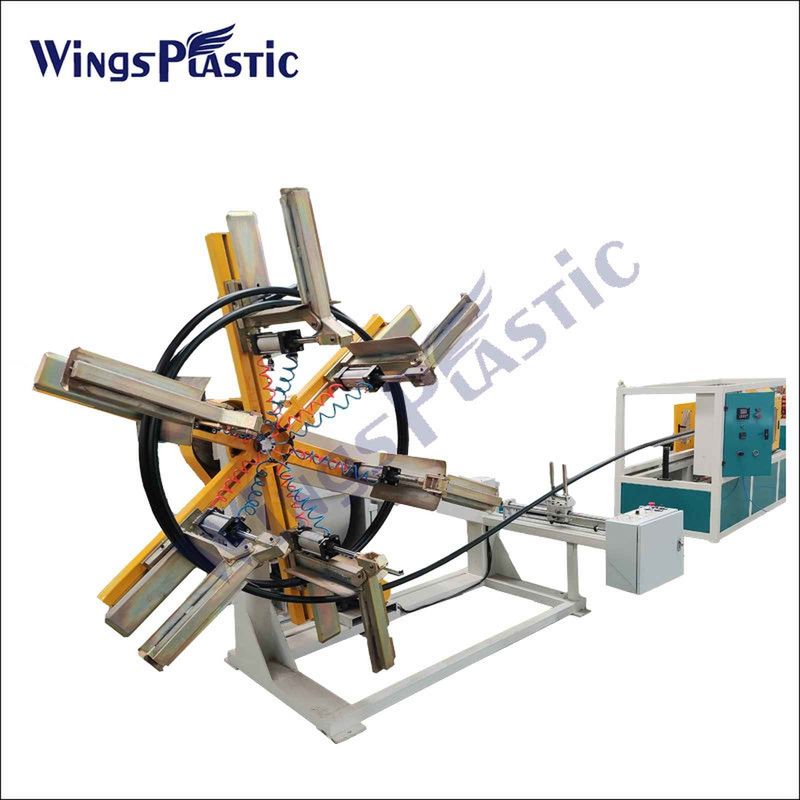

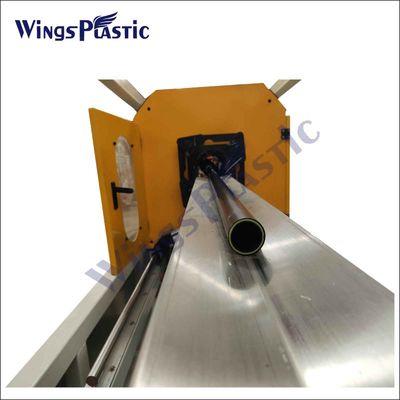

PE granules + additive → mixing → spring feeder/vacuum feeder with hopper dryer→ single screw extruder → mould → vacuum forming machine → cooling tank machine → haul off machine

→ cutting machine → discharging stacker
