Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
| Suitable Materials: | HDPE LDPE EVA PVC PA | ||
| High Light: | Single Layer Plastic Pipe Extrusion Line 3mm,Corrugated Pipe Extrusion Line 50HZ,Flexible Corrugated Pipe Extrusion Line 3mm |
||

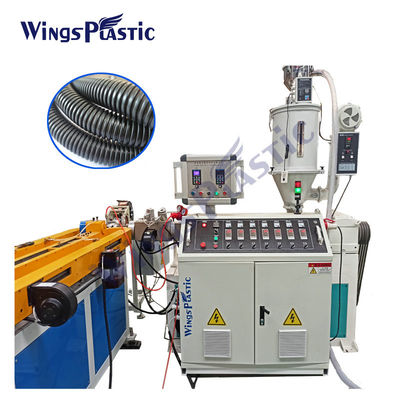

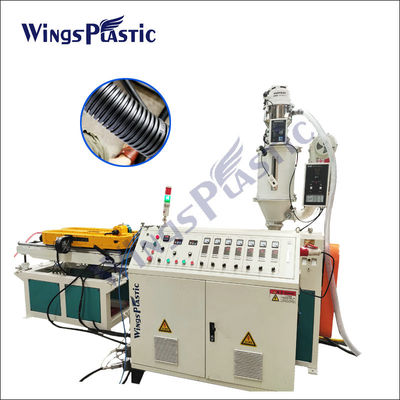

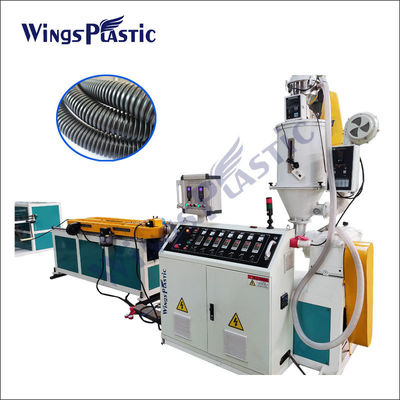

Plastic Single Layer Corrugated Hose Making Machine / Flexible Corrugated Tube Extrusion Line

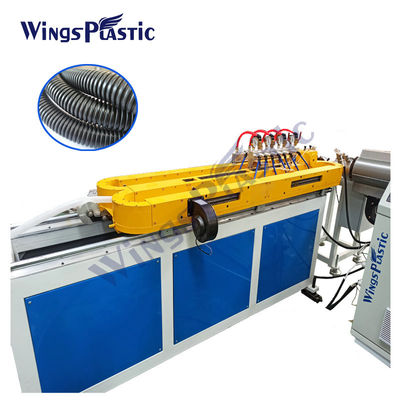

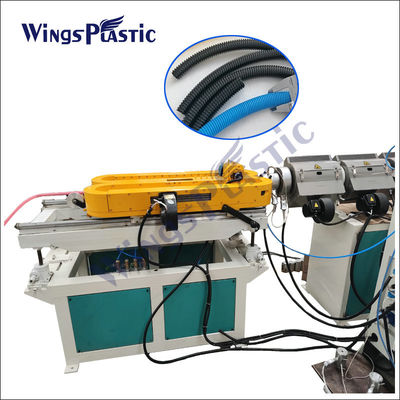

The forming die by gear and orbit, mould replacement convenient 15 minutes to complete.
Can accommodate two size of the aperture ona pair of mold design, can save the mould cost, reduce the time of the mould replacement, improve work efficiency.
Single wall corrugated pipe production flow:

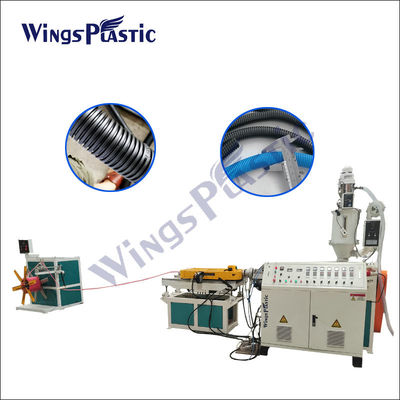

Automatic loader→Single screw extruder→Die→Forming moulds→Haul off and cutter (optional)→Double working-station winder.
Single wall corrugated hose introduction:
1.Material: PE,PA,PP or PVC
2.Diameter: could be 3mm to 110mm
3.Length:30m (it is ajustable)
4.Stucture: Wavy shape both interiorly and exteriorly
5.Color: Black,yellow,white.Other colors are customizable upon requirements
6.Property: Good flexibility,smooth and bright surface,chemical corrosion resistant
7.Application: It can be used in machineries,electric equipment,foodstuff machineries,automatic meters and gauges,protecting the cables from abrasion and providing insulation to the wires and cables
Equipment list of the corrugated pipe making machine:
| No. | Name | Quantity |
| 1 | Single screw extruder | 1 SET |
| 2 | Head die and mould | 1 SET |
| 3 | Mould block | 1 SET |
| 4 | Forming machine | 1 SET |
| 5 | Winder | 1 SET |
Plastic Single Layer Corrugated Hose Making Machine / Flexible Corrugated Tube Extruder For 15-50mm
| Item | Description | Unit | SJ65/30 |
| 1 | Screw diameter | mm | 65 |
| 2 | L: D | 30:1 | |
| 3 | Motor power | KW | AC22 |
| 4 | Brand motor | Siemens | |
| 5 | Motor speed adjusting mode | Frequency conversion | |
| 6 | Inverter | ABB | |
| 8 | Extrusion output | Kg/h | 50-75 |
| 9 | Material of screw and barrel | 38CrMoAlA,Nitrogen treated | |
| 10 | Nitrogen depth | mm | 0.5-0.8 |
| 11 | Heating power | KW | 4 zones, 14kw |
| 12 | Cooling power | KW | 4 zones, 250w×4 |
| 13 | Gear box | Hard gear surface, low noise design | |
| 14 | PLC touch screen: Siemens, screen size: 10inches(optional) | ||
| 15 | Contactor |
Schneider |
|
