Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
| Suitable Materials: | HDPE LDPE EVA PVC PA | ||
| Highlight: | PA Plastic Pipe Extrusion Line 80kg/h,PP Plastic Pipe Extrusion Line 50hz,Flexible Conduits PE Pipe Extruder 80kg/h |
||

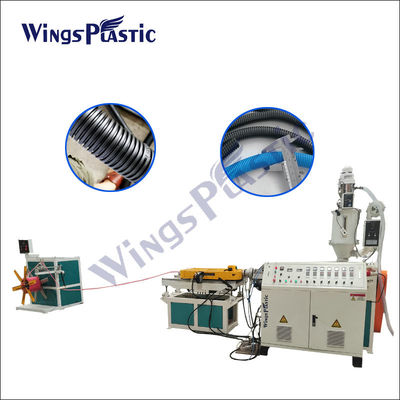

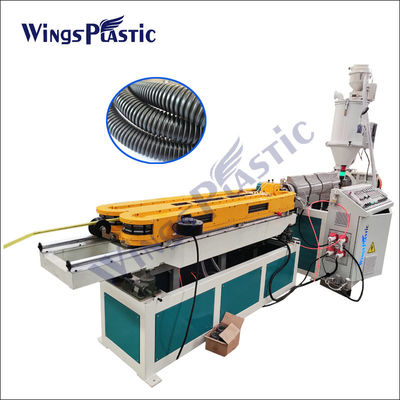

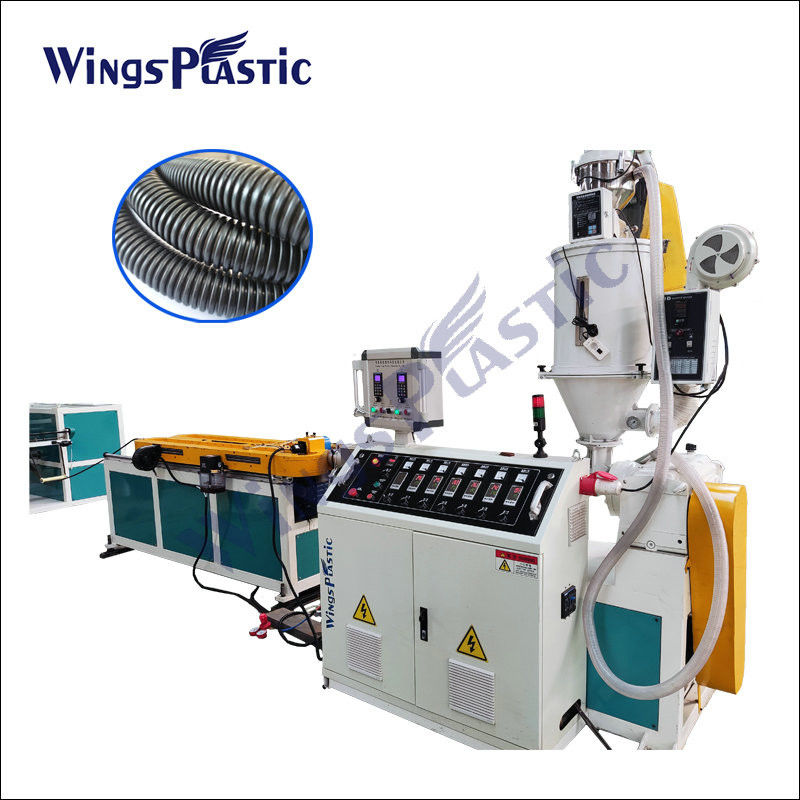

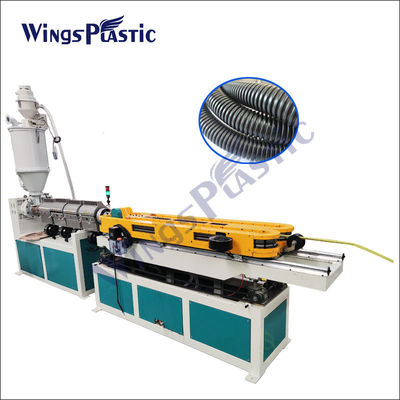

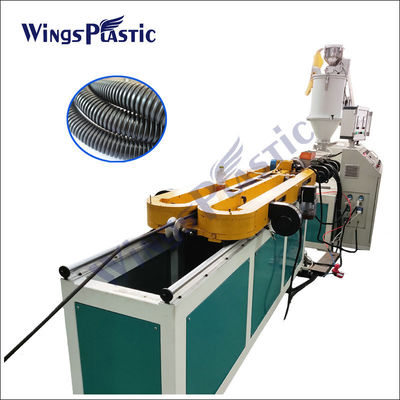

Plastic Pipe Extrusion Line Machine For PE PVC PA PP Flexible Conduits
1. The automatic feeding machine
2. Single screw extruder
3. The nose
4. High speed corrugated pipe forming machine

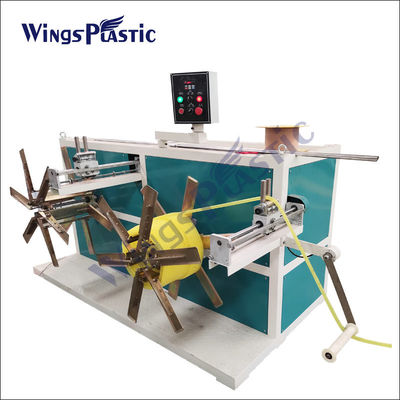

5. Corrugated pipe winding machine
Plastic corrugated conduits features:
A)Flexible, excellent tenacity and high mechanical strength.
B)Bellows inside and outside.
C)Luster in surface and Insulation.
D)wind resistant; Anti-friction; Resistant to oil, acid and solvents; Uv-resistant.
E)Free of halogen, phosphor and cadmium.
Material: PA / PP / PE / PVC
Working Temperature:
PA(nylon): -40° C~+125° C, 140 ° C in short time
PP: -30° C~+110° C, 130 ° C in short time
PE: -30° C~+100° C, 120 ° C in short time
PVC: -20° C~+80° C
Plastic Flexible Corrugated Hose Production Flow:
Automatic loader→Single screw extruder→Die→Forming moulds→Haul off and cutter (optional)→Double working-station winder.
Equipment list of the corrugated pipe making machine:
| No. | Name | Quantity |
| 1 | Single screw extruder | 1 SET |
| 2 | Head die and mould | 1 SET |
| 3 | Mould block | 1 SET |
| 4 | Forming machine | 1 SET |
| 5 | Winder | 1 SET |
