Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
| Suitable Materials: | HDPE LDPE EVA PVC PA | ||
| Highlight: | Plastic Pipe Extrusion Line 80kg/h,Small Diameter Plastic Pipe Extrusion Line 50mm,Plastic Corrugated Pipe Extrusion Line 80kg/h |
||
Small Diameter Plastic Corrugated Pipe Extrusion Line / Making Machine
Qingdao Wings Plastic Technology Co., LTD. produce single wall corrugated pipe , high temperature resistant, hose corrugated pipe equipment, corrosion resistance, wear resistance, high strength. Used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instrumentation and other fields, the market demand much.
The line is special designed by Qingdao Wings Plastic Technology Co.,Ltd to produce the small size plastic corrugated pipe -- single wall corrugated pipe. The machine adopts special single screw extruder for PVC , PE, PP, PA materials, gear driving and pathway running mould block system, water and air cooling system, ensure the corrugated pipe being produced in high speed with good quality,
The pipe produced by our machine is corrosion resistance, impact resistance, flexible and elastic , smooth surface, sighess break joint . It is widely used as automotive wiring harness pipe, mechanical electric line conduit hose, threading pipe , drainage pipe with small holes.
Always, we have running machine in our factory, we could test the running machine for you, please come and check.
Small Diameter Plastic Corrugated Pipe Extrusion Line / Making Machine:
| Main Machine Provided |
SJ-65×28 Or 65×30 Or 65×33 Single Screw Extruder According The Plastic Materials |
| Pair of Mold Block | 72 |
| Pipe State | Single wall corrugated pipe |
| Corrugating Speed | 10-20m/min |
| Mold Block Driving Mode | Gear Driving and Pathway Running |
| Pipe Cooling Mode | Water + air cooling |
| Driving Power Of Extruder Machine | 22KW |
| Machinery Dimension |
7500mm×1600mm×1700mm (L×W×H) |
The corrugated pipe produced by our machine pictures:

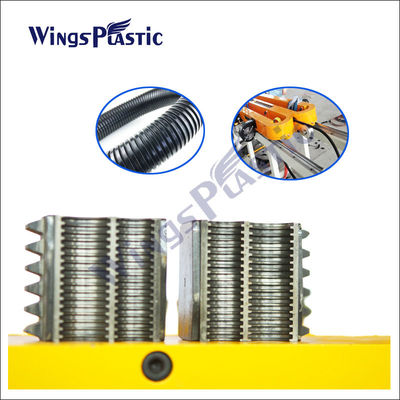

Our corrugated forming blocks pictures: it could be two diameters, it will reduce the time to changing the blocks for customer.

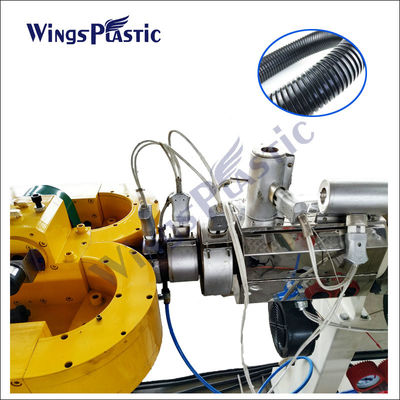

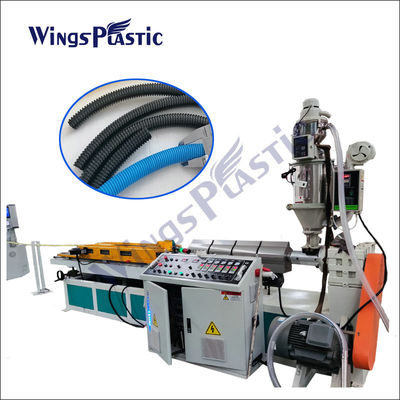

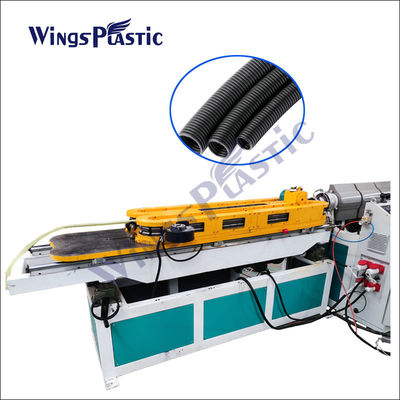

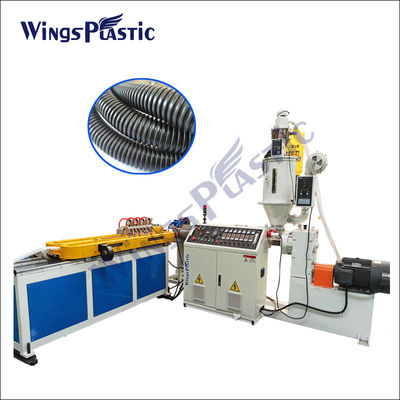

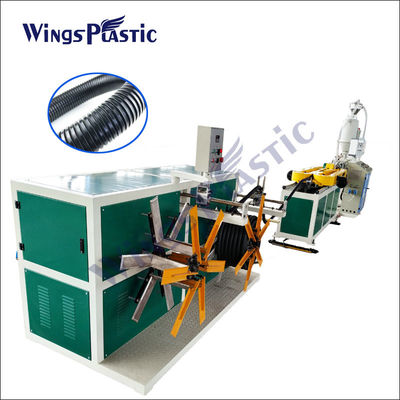

Our machinery line: the single screw extruder with automatic feeding system, corrugated forming machine, pipe winder.
