Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line

Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line
Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line

Large Image :  Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-25000 per set
Packaging Details: woode case and container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Plastic PE PP PPR HDPE LDPE Water Electric Conduit Pipe Tube Extrusion Line

Description
Screw Material: 38CrMoAlA Screw L/D Ratio: 33:1
Raw Material: PP PE Granules Inverter: Delta Brand
Contactor: Siemens Contactor Switch: CHNT

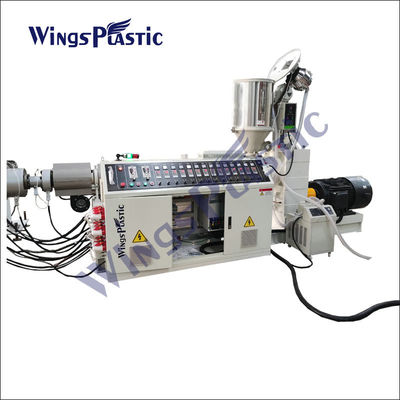

Screw Speed: 94 Rpm Screw Diameter: 65mm
Temperature Controller: Omron Brand Application: Pipe
High Light:

LDPE Electric Conduit Pipe Extruder

,

HDPE Electrical Conduit Pipe Extruder

,

PPR Conduit Tube Extrusion Line

Plastic PE/PP/PPR/HDPE/LDPE Water Electric Conduit Pipe Tube Extrusion Making Production Line

Product Introduction

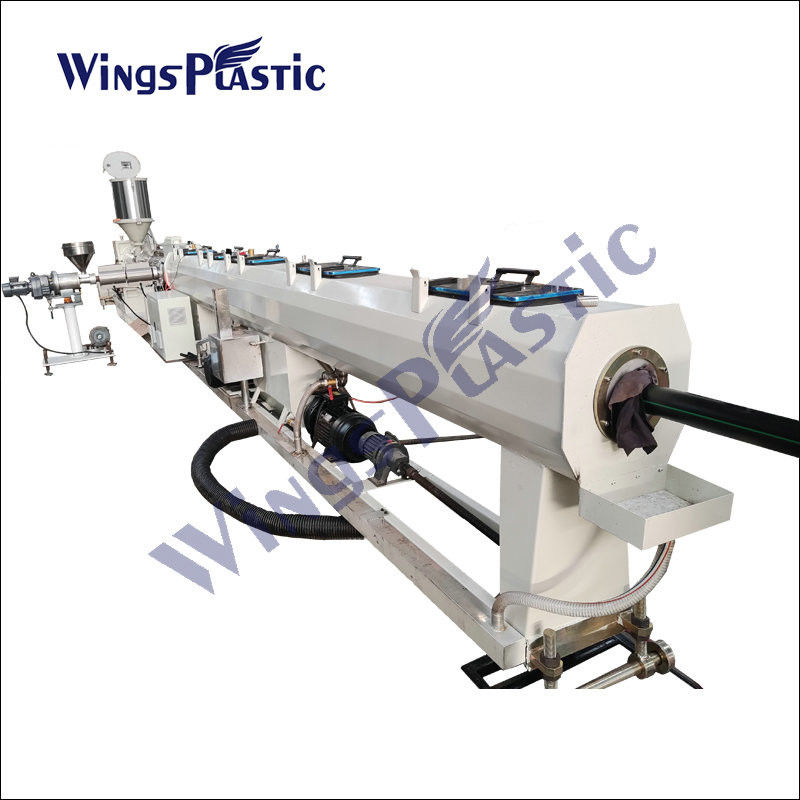

PE Pipe Extrusion Machine is mainly used for producing agricultural irrigation pipes, drainage pipes, gas pipes, water supplying pipes , cable conduit pipes etc.
The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes .
Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Process Flow:

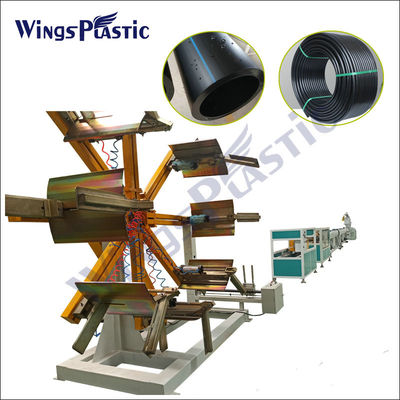

Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single screw extruder →Co-extruder
PE pipe die head
1. Suitable for HDPE, LDPE, PERT, PP, PPB, PPH, PP-R, PS pipe production
2. Diameter range from Ø16 to Ø1600 mm
3. High melt homogenity
4. Low pressure built up even with high outputs
5. Melt channel distribution system
6. Equipped with seramic heaters
7. Pipe head carriage for easy movement
8. Pipe heads are designed according to application requirements.
9. Easy maintenance thanks to the optimized and proven designed construction.

Main advantages:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR PE pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter
etc can be controlled by touch screen synchronously.
5. We also can provide a variety of exhaust-type extruder.
