Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube

Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube
Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube

Large Image :  Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20000-25000 per set
Packaging Details: woode case and container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube

Description
High Light:

Microduct Bundle Pipe Extrusion Machine

,

Microducts Bundles Tube Extrusion Machine

Micro Duct Bundle Plastic Tube Pipe Tube Making Machine Microducts Bundles Tube Pipe Extrusion Machine Production Line

Product Introduction

HDPE Communication pipe machine have two system, one is HDPE microduct tube extrusion line, one is HDPE communication bundle pipe
extrusion line. And the bundle pipe could be spiral corrugated pipe (COD pipe) or polygon pipe system.
Machinery equipment List:

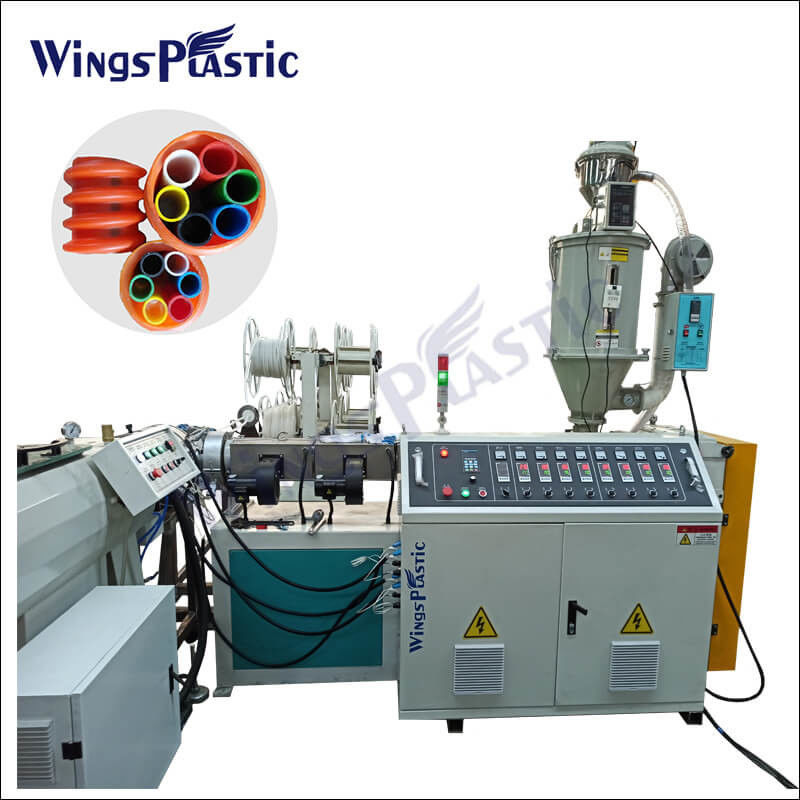

1. Core pipe system include: Automatic feeder, SJ65/33 Extruder. SJ25/25 Markline extruder, Core pipe die, Vacuum tank, water
tank, haul-off machine, coiler

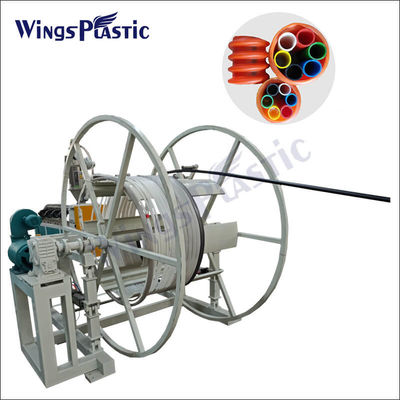

2. Bundle Pipe system include: Uncoiler for core pipe, guiding device, coating die, 65/33 Extruder, Vacuum tank, haul off machine,coiler



Common information of Machine Line
1. In view of operation safety, machine equipped with:
* E-stop switch;
* Control system to prevent machine from damaged at abnormal condition;
* Flash lamp and voice show machine is under abnormal running condition;
* The parts which probably cause damage to operation staff are all designed with protection.

2. The following technical documents included in the content of purchasing object:
* Installation layout diagram of machines;
* Circuit diagram of machines;
* Operation manual of machines;
* Certificate of machine quality;
* Certificate of machine warranty by supplier;
* Spare parts (refer to spare parts list).

3. Name and model : SXG-75X45X25T Silicon core HDPE tube extrusion line
* Output: Max 160 ± 10%Kg/h, expected producing speed: 0–100 m/min;
* Environment: Indoor, humidity 0.85, no condensation point, temperature<=40℃;
* Power supply: 380V 50HZ, 3-phase 4wires; Install power <=160KW;
* Circulation water flow: 12-14.0m3/h;
* Compressed air: 0.6-0.7Mpa.
* Operation direction of production line is from right to left direction;
* Core height of production line is 1100mm;
* Install space: 23.0m x 3.5m x 3.5m (length x width x height);
* Color of machine: RAL 7035; Or according to client appointed color;



Specifications of TUBE
* Raw material: HDPE + silicon granule;
* Color of pipe: Customized
* Size of pipe: OD 8-16mm
* Eccentricity : <=0.10
* Internal and external surface of pipe should be smooth and single color, should be uniform wall thickness, no manufacturing defect and air bubble, shrinkage, crack, non-uniformity etc.

Micro Duct Bundle Plastic Pipe Extrusion Machine For Microducts Bundles Tube 0
