HDPE PE Cable Micropipe Bundle Casing Pipe Extrusion Machine Production Line

Product Introduction

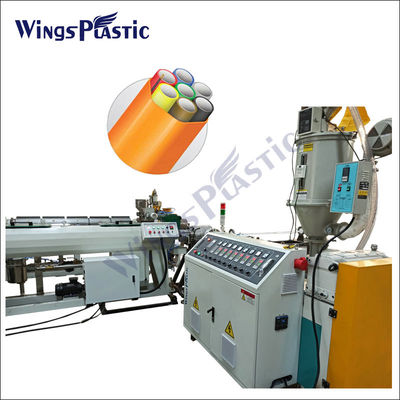

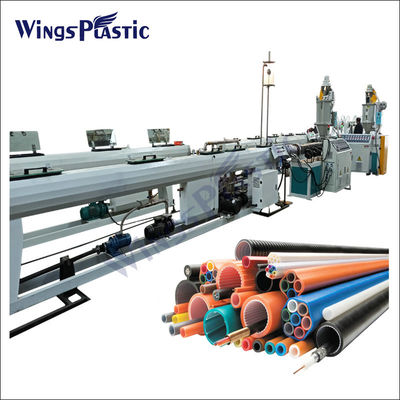

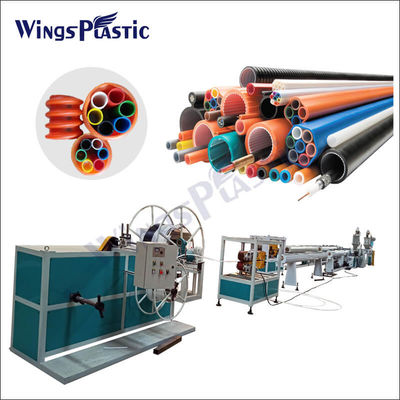

Bundle Bundles Pipe Tube Extrusion Line
This machine is used to produce the new type communication pipe, called tube bundle. The tube bundle is made by one micro duct or more than one micro ducts grouped according to a certain arrangement order with outer sheathing layer. It can hold more conduits in the limited space.
This is a whole production line for making 12 ways multiduct for cable communication. First, making a single microduct, then dundling up the muitiple ducts together.This machine can the sheath Bundled microduct for 2 way, 4 way, 7 way duct and 12 way ducts.
Product Details
co-extrusion mold
1. Material of mold body: 40Cr.
2. Structure of mold: High pressure volumetric mold, can realize high speed, high precision production.
3. Mandrel and die: Material is High class "H13" die steel, precision grinding.
Cooling tank:
1. Specification: Length 6000mm, width 180mm, depth 180mm, made by SUS304 material, opened structure.
2. Water circulation system: Circulation water reservoir (SUS304)—1set, circulation water reservoir built-in level control device
puller:
1. Belt: Multi layer wear-resistant belt, 2pcs.
2. Specification of belt: Effective contact length 800mm, width 80mm, clamping height 0-80mm.
3. Speed setting: 6.0 - 60m/min.
