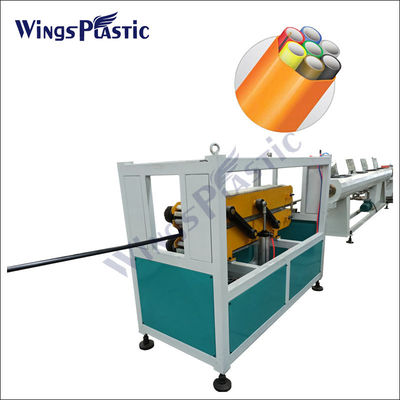

HDPE Cable Micropipe Making Machine Tube Bundle Pipe Extrusion Production Line

HDPE Cable Micropipe Making Machine Tube Bundle Pipe Extrusion Production Line

Common information of machine line
1. In view of operation safety, machine equipped with:
E-stop switch;
Control system to prevent machine from damaged at abnormal condition;
Flash lamp and voice show machine is under abnormal running condition;
The parts which probably cause damage to operation staff are all designed with protection.
2.The following technical documents included in the content of purchasing object:
Installation layout diagram of machines;
Circuit diagram of machines;
Operation manual of machines;
Certificte of machine quality;
Certificate of machine warranty by supplier;
Spare parts (refer to spare parts list).

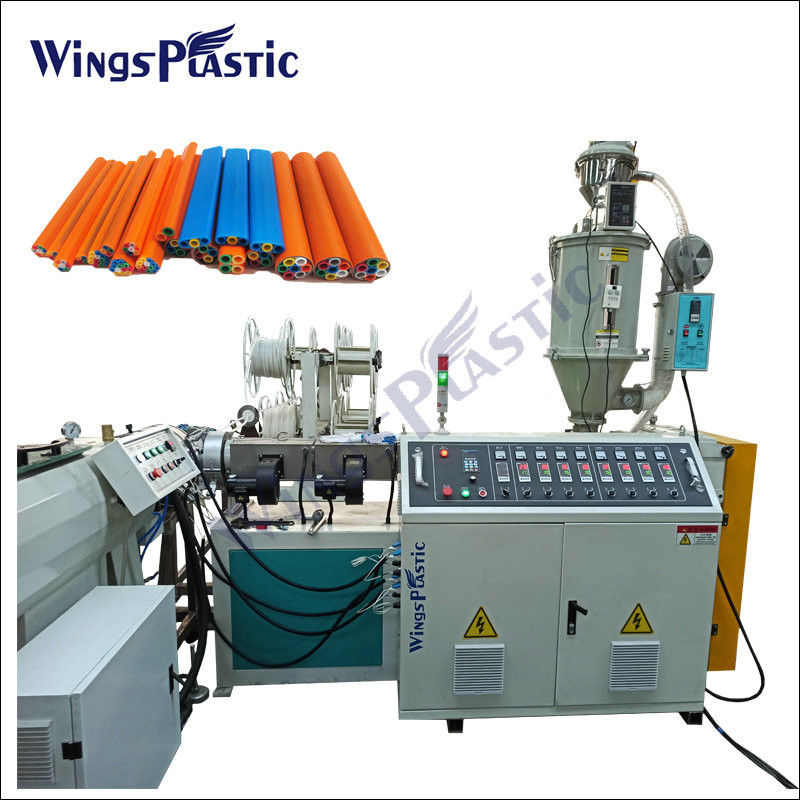

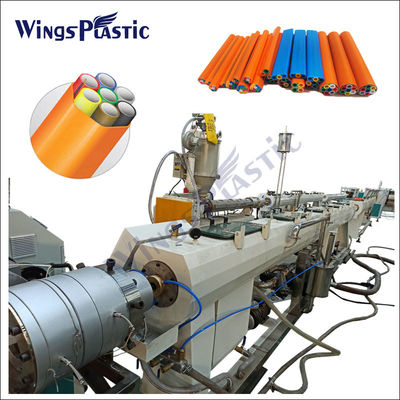

3.Name and model : SJ75-GF63 HDPE micro-duct bundling pipe extrusion line
Output: Max 160 ± 10%Kg/h;
Environment: Indoor, humidity 0.85, no condensation point, temperature≤40℃;
Power supply: 380V 50HZ, 3-phase 4wires; Install power ≤110KW;
Circulation water flow: 6-8.0m3/h;
Compressed air: 0.6-0.7Mpa.
Operation direction of production line is from right to left direction;
Core height of production line is 1100mm;
Install space: 35.0m x 3.5m x 3.5m (length x width x height);
Color of machine: RAL 7035; Or according to client appointed color.
Specifications of TUBE
Raw material: HDPE granule;
Size of pipe: OD 10-63mm
