20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine

20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine
20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine 20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine 20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine 20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine 20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine

Large Image :  20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

20mm-110mm Diameter PP PE PB PERT Water Pipe Gas Pipe Underground Tube Making Machine

Description
Cooling Power: 0.18KW*4 Output: 100kg/h -200kg/h
Motor Power: 15KW Brand: Wings
Center Height: 1000mm Screw L/D Ratio: 33:1
Material: PE PP PA Voltage: 380V/50HZ
High Light:

PP Underground Tube Making Machine

,

PERT Water Pipe Making Machine

,

110mm Diameter Pipe Extruder Machine

Product Description:

1. Raw material supply system: PE (polyethylene) particles as raw materials need to be supplied to the production line through the conveyor system.

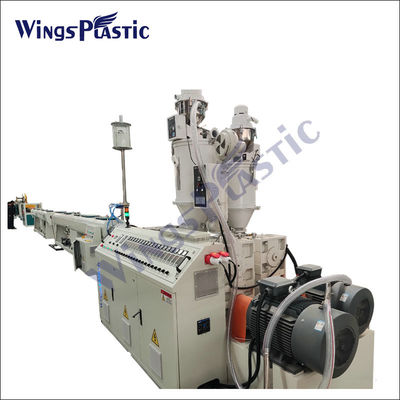

2. Extruder: The extruder is the core equipment for the production of PE tubes, which extrudes the melted PE particles through the die head to form a tube.

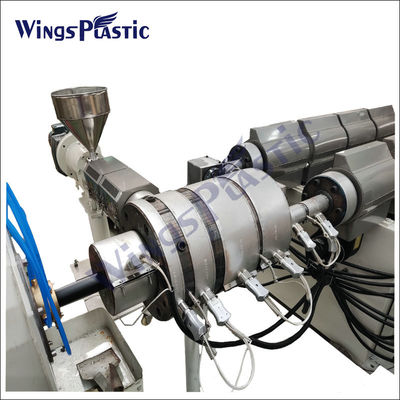

3. Die head: The die head determines the diameter and wall thickness of the PE tube, and different specifications of the PE tube require different die heads.

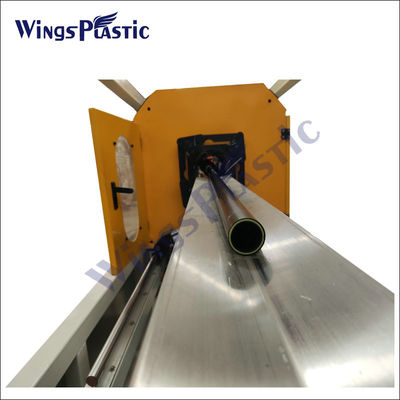

4. Cooling system: The produced PE pipe needs to be cooled quickly through the cooling system to maintain its shape and physical characteristics.

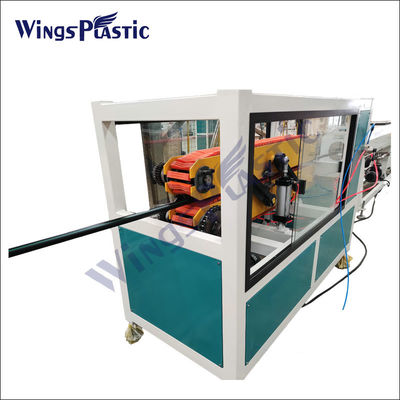

5. Pipe pulling machine: This equipment is used to pull the extruded PE pipe to maintain a certain stretch and straightness.

6. Cutting machine: PE pipe needs to be cut according to the required length, and the cutting machine can accurately complete this task.

7. Testing and quality control equipment: In the production process, it is usually necessary to test the diameter, wall thickness and other physical characteristics of PE tubes to ensure quality.

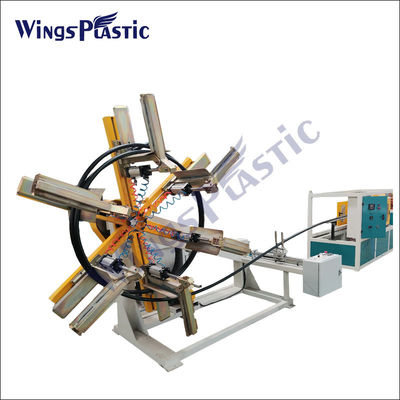

8. Packaging equipment: The production of good PE pipes need to be packaged, usually in the form of rolls or pipes wrapped or packaged into the bag.

These are the key equipment of the general PE pipe production line, and the specific equipment and process may vary depending on the manufacturer and product specifications. Producing PE tubes is a complex process that requires a high degree of automation and precise control to ensure product quality.



Features:

  • Product Name: PE Pipe Extruder Machine
  • Cooling Power: 0.18KW*4
  • Control System: PLC
  • Screw L/D Ratio: 33:1
  • Screw Diameter: 65mm
  • Motor Power: 15KW
  • Special Features: Plastic Spiral Wrap Hose Extruder Machine, PP Spiral Wrap Hose Protector Extrusion Machine, Plastic Spiral Wrap Hose Extruder Machine


Technical Parameters:

Parameter Value
Output 100kg/h - 200kg/h
Brand Wings
Cooling Power 0.18KW*4
Material PE, PP, PA
Screw Diameter 65mm
Screw L/D Ratio 33:1
Control System PLC
Center Height 1000mm
Motor Power 15KW
Voltage 380V/50HZ


Applications:

Wings Plastic's SJ65/30 PE Pipe Extruder Machine is a cutting-edge product, utilizing the latest technology to meet the requirements of the most demanding industrial applications. It is made with high-grade materials and features a 33:1 screw L/D ratio, a 65mm screw diameter, and a 1000mm center height. This machine is capable of processing PP, PE, PA and other materials to create a wide variety of products, including PP spiral wrap hose protectors, PP PE spiral wire reinforced hoses, and plastic spiral wrap hoses. The extrusion machine is also equipped with 0.18KW*4 cooling power for reliable operation. The PE Pipe Extruder Machine is suitable for a variety of industries and can be easily integrated into existing production lines. Its superior performance and reasonable price make it a great choice for any business.



Support and Services:

Technical Support and Service for PE Pipe Extruder Machine

We provide comprehensive technical support and service for our PE Pipe Extruder Machine. Our experienced technicians and engineers can provide you with the following services:

  • Installation and commissioning of the machine
  • Troubleshooting and maintenance
  • Training on the operation and use of the machine
  • Provide spare parts and consumables
  • Customer service and technical support

We also provide customized services, including OEM and ODM services. If you have any questions or need any help, please feel free to contact us at any time.



Packing and Shipping:

Packaging and Shipping for PE Pipe Extruder Machine:

The PE Pipe Extruder Machine will be packed in a wooden crate, filled with foam to ensure the safety of the machine during transportation. We will use the express delivery for the transportation of the machine, and the shipping time will depend on the customer's location.



FAQ:

PE Pipe Extruder Machine Questions & Answers
Q1: What is the Brand Name and Model Number of the PE Pipe Extruder Machine?
A1: The Brand Name of the PE Pipe Extruder Machine is Wings Plastic and the Model Number is SJ65/30.
Q2: What is the Place of Origin of the PE Pipe Extruder Machine?
A2: The Place of Origin of the PE Pipe Extruder Machine is Qingdao China.
Q3: What is the main purpose of the PE Pipe Extruder Machine?
A3: The PE Pipe Extruder Machine is mainly used to produce PE pipes.
Q4: What are the features of the PE Pipe Extruder Machine?
A4: The PE Pipe Extruder Machine features high performance, high efficiency, low energy consumption and long service life.
Q5: What materials can the PE Pipe Extruder Machine process?
A5: The PE Pipe Extruder Machine can process PE, PP, PPR, ABS and other plastic materials.
