Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production

Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production
Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production

Large Image :  Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production

Description
Center Height: 1000mm Output: 100kg/h -200kg/h
Screw L/D Ratio: 33:1 Motor Power: 15KW
Brand: Wings Material: PE PP PERT
Cooling Power: 0.18KW*4 Screw Diameter: 65mm
High Light:

PERT Pipe Extruder Machine

,

110MM PE Pipe Extruder Machine

,

100kg/h PE Pipe Extruder Machine

Product Description:

Wings Plastic 40-110MM PE PP PERT Pipe Extruder Machine for Efficient Production 0

PE pipe production equipment usually includes the following key parts:

1. Raw material supply system: PE (polyethylene) particles as raw materials need to be supplied to the production line through the conveyor system.

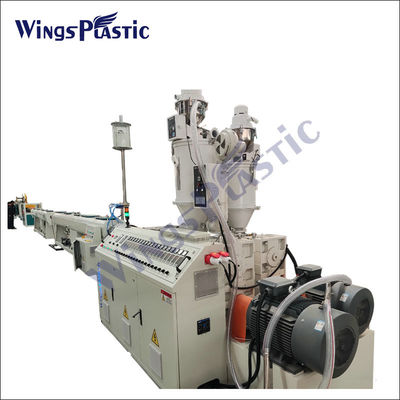

2. Extruder: The extruder is the core equipment for the production of PE tubes, which extrudes the melted PE particles through the die head to form a tube.

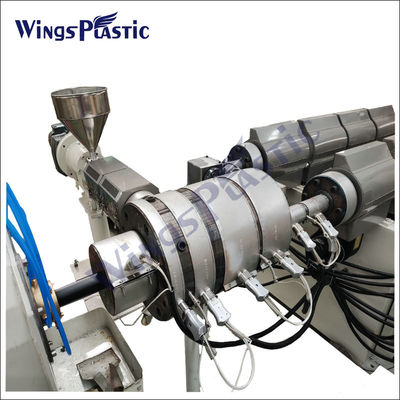

3. Die head: The die head determines the diameter and wall thickness of the PE tube, and different specifications of the PE tube require different die heads.

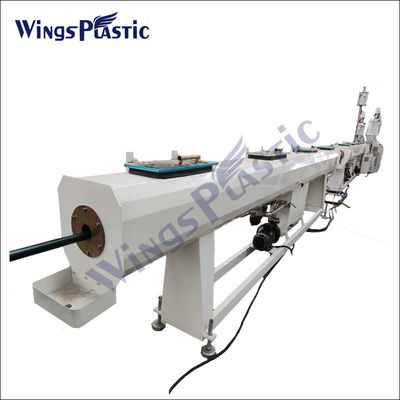

4. Cooling system: The produced PE pipe needs to be cooled quickly through the cooling system to maintain its shape and physical characteristics.

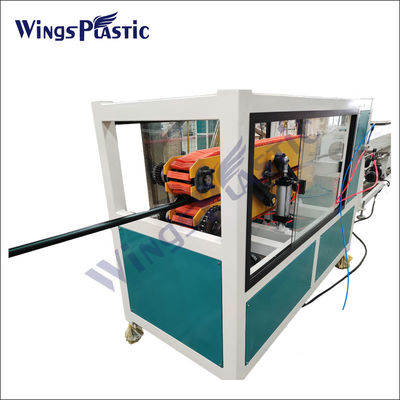

5. Pipe pulling machine: This equipment is used to pull the extruded PE pipe to maintain a certain stretch and straightness.

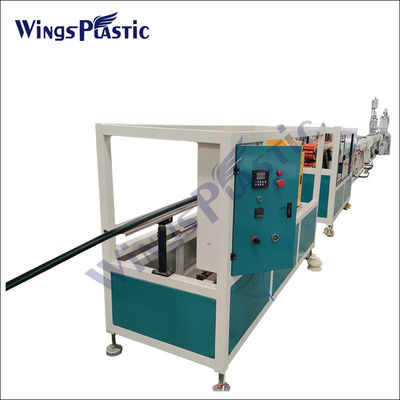

6. Cutting machine: PE pipe needs to be cut according to the required length, and the cutting machine can accurately complete this task.

7. Testing and quality control equipment: In the production process, it is usually necessary to test the diameter, wall thickness and other physical characteristics of PE tubes to ensure quality.

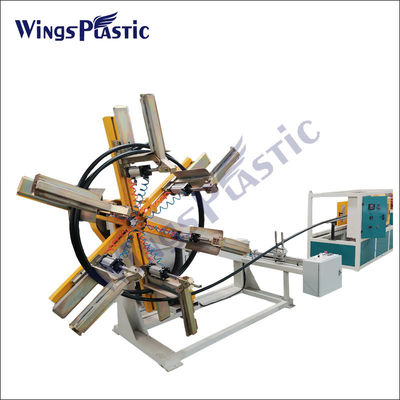

8. Packaging equipment: The production of good PE pipes need to be packaged, usually in the form of rolls or pipes wrapped or packaged into the bag.

These are the key equipment of the general PE pipe production line, and the specific equipment and process may vary depending on the manufacturer and product specifications. Producing PE tubes is a complex process that requires a high degree of automation and precise control to ensure product quality.



Features:

  • Product Name: PE Pipe Extruder Machine
  • Output: 100kg/h -200kg/h
  • Cooling Power: 0.18KW*4
  • Material: PE PP PA
  • Voltage: 380V/50HZ
  • Control System: PLC
  • Special Features: PP Spiral Wrap Hose Protector Extrusion Machine, PP PE PA Spiral Guard Hose Making Machine, Plastic Spiral Wrap Hose Extruder Machine


Technical Parameters:

Parameters Details
Center Height 1000mm
Screw L/D Ratio 33:1
Screw Diameter 65mm
Motor Power 15KW
Brand Wings
Voltage 380V/50HZ
Output 100kg/h -200kg/h
Control System PLC
Material PE PP PA
Cooling Power 0.18KW*4
Special Design PP Spiral Wrap Hose Protector Extrusion Machine


Applications:

PE pipe (polyethylene pipe) has a wide range of applications in industrial and civil fields. The following are some common PE tube equipment applications:

1. Tap water supply: PE pipe is widely used in tap water supply system because it has corrosion resistance, pressure resistance and wear resistance. They are used to transport drinking water to domestic and industrial uses.

2. Natural gas transmission: PE pipe is also used in natural gas transmission pipeline system. They can withstand high pressure and resist corrosion, thus ensuring the safety and reliability of natural gas transmission.

3. Drainage systems: In drainage systems, PE pipes are commonly used in drainage pipes and sewer systems because they have excellent chemical resistance and are not susceptible to pollutants.

4. Agricultural irrigation: PE pipes are used in irrigation systems in the agricultural field for water and fertilizer transportation. They are durable and not susceptible to UV rays and chemicals.

5. Mining and industrial applications: In the mining and industrial sector, PE pipes are commonly used to transport a variety of chemicals, wastewater and other fluids because they can withstand a variety of corrosive substances.

6. Underground cable protection: PE tubes are also used for cable protection, burying cables underground to prevent damage and protect the stability of telecommunications and power systems.

In general, PE pipe equipment has a wide range of uses in the transport of liquids and gases, drainage systems, agricultural and industrial applications, and cable protection, due to their durability and chemical stability.



Support and Services:

Technical Support and Service for PE Pipe Extruder Machine

We provide technical support and service for our PE Pipe Extruder Machine. Our team of experts are available to answer technical questions and provide assistance with troubleshooting and maintenance.

We provide on-site and remote technical support for our customers. Our on-site technicians can come to your location to diagnose and repair any issue you may be having with your PE Pipe Extruder Machine. We also offer remote technical support, where our technicians can access your machine remotely to diagnose and troubleshoot any issues.

We provide preventative maintenance services for our PE Pipe Extruder Machines. Our technicians can inspect your machine to ensure that it is in good working order and identify any potential problems before they become serious issues.

We also offer parts and accessories for our PE Pipe Extruder Machine. We provide genuine OEM parts and accessories to ensure that your machine is running at its best.

Our team is available 24 hours a day, 7 days a week to provide technical support and service for our PE Pipe Extruder Machine. We are dedicated to providing excellent customer service and ensuring that our customers have the best experience possible.



Packing and Shipping:

PE Pipe Extruder Machine Packaging and Shipping:

  • Each PE Pipe Extruder Machine is packaged with a plastic film and placed in a wooden box.
  • The wooden box is secured with reinforced steel straps and a waterproof cover.
  • Shipping is done via air, sea, or land depending on customer preference and location.


FAQ:

Q: What is the brand name of the PE Pipe Extruder Machine?
A: The brand name of the PE Pipe Extruder Machine is Wings Plastic.
Q: What is the model number of the PE Pipe Extruder Machine?
A: The model number of the PE Pipe Extruder Machine is SJ65/30.
Q: Where is the PE Pipe Extruder Machine manufactured?
A: The PE Pipe Extruder Machine is manufactured in Qingdao, China.
Q: What materials can the PE Pipe Extruder Machine process?
A: The PE Pipe Extruder Machine can process polyethylene (PE) materials.
Q: What is the output capacity of the PE Pipe Extruder Machine?
A: The output capacity of the PE Pipe Extruder Machine is up to 120kg/h.
