16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine

16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine
16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine 16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine 16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine

Large Image :  16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-25000 per set
Packaging Details: woode case and container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine

Description
Screw Material: 38CrMoAlA Screw L/D Ratio: 33:1
Raw Material: PP PE Granules Inverter: Delta Brand
Contactor: Siemens Contactor Switch: CHNT
Screw Speed: 94 Rpm Screw Diameter: 65mm
Temperature Controller: Omron Brand Application: Pipe
High Light:

16mm Pe Tube Making Machine

,

Hdpe Pipe Extrusion Machine

,

38CrMoAlA Pe Electric Tube Extruder

16mm Pe Elctric Tube Making Machine Hdpe Pipe Production Equipment Extrusion Machine

PE Pipe Extrusion Production Line
PE series pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter,both vacuum pump and driving motor have applied excellent products. The haul-off unit includes two-claw type, three-claw type, four-claw type,six-claw type, eight-claw type, ten-claw type, twelve-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high.

Illustration of PE Pipe Making Machine
pe pipe extrusion line mainly consists of extruder, vacuum calibration tank, haul-off unit, cutter, stacker etc.
The main extruder adopts PE high-efficiency screw, notched feeding cylinder and strong water jacket cooler, which greatly improves its transmission capacity.

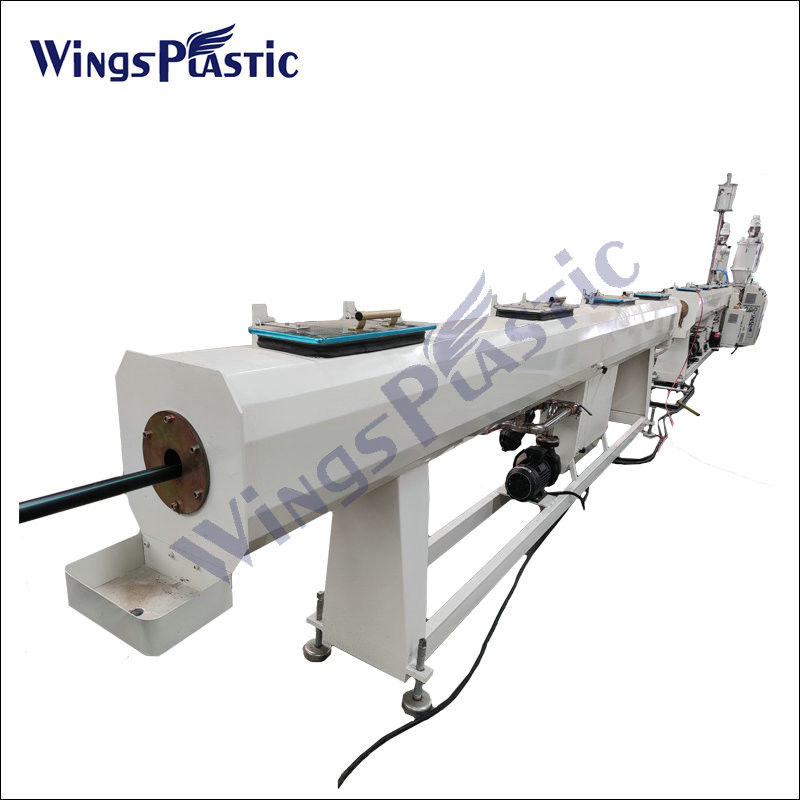

The high-efficiency double-cavity vacuum calibrating technology and spray cooling tank improve the rate of finished products.

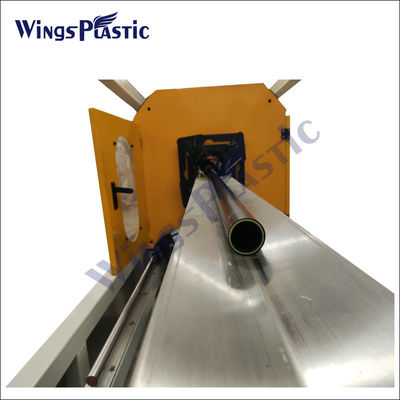

pe pipe extrusion line adopts multi-pedrail tractor to drive all pedrails through central motor to get synchronous height and guarantee pipe's roundness.
And the high-speed, precise designed cutting machine is low in noise.

16mm Pe Electric Tube Making Machine Hdpe Pipe Extrusion Machine 0
