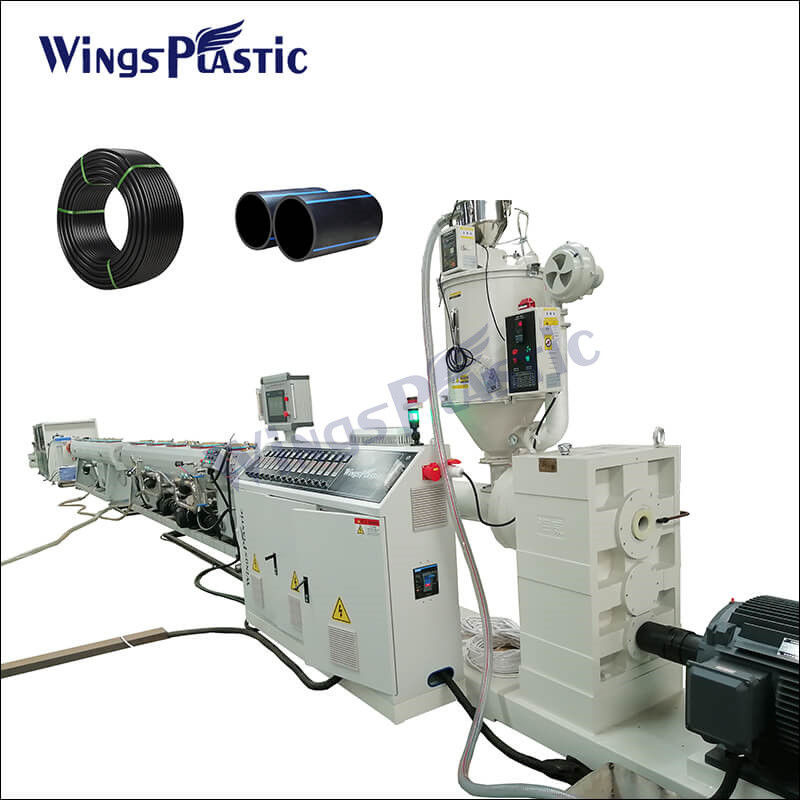

Hdpe Pipe Plant Produce Hdpe Pipe Extruder And Pe Pipe Extruder Machine

HDPE Pipe Application:
Agricultural Irrigation water supply&Sweage drainage pipe&Discharge system&Gas supplly system&Architectural water supply.

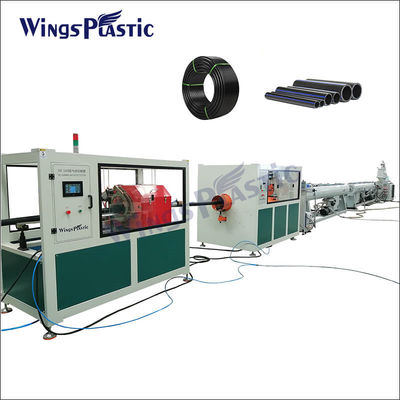

Production Flow of Pipe Production Line:
Material →Color Mixer →Automatic Feeder→Hopper Dryer →Single Screw Extruder →Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →Cutter →Stacker or Coiler
Features of Pipe Machine:
1. 30m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;

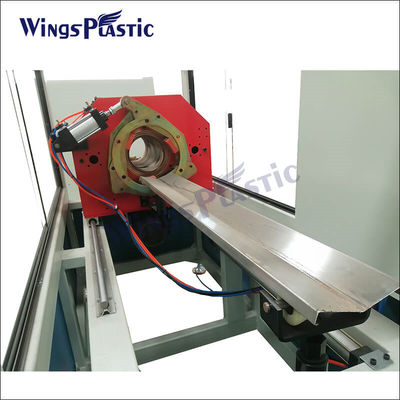

8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.
