PA Single Wall COD Corrugated Optic Duct Pipe Making Machine

Common information of machine line
1. In view of operation safety, machine equipped with:
E-stop switch;
Control system to prevent machine from damaged at abnormal condition;
Flash lamp and voice show machine is under abnormal running condition;
The parts which probably cause damage to operation staff are all designed with protection.


2.The following technical documents included in the content of purchasing object:
Installation layout diagram of machines;
Circuit diagram of machines;
Operation manual of machines;
Certificte of machine quality;
Certificate of machine warranty by supplier;
Spare parts (refer to spare parts list).

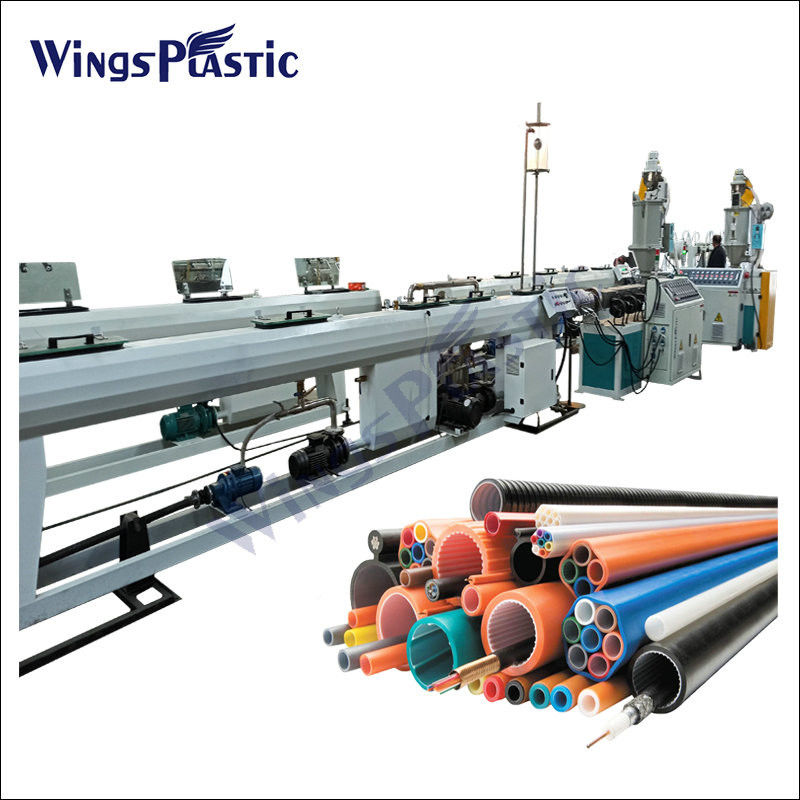

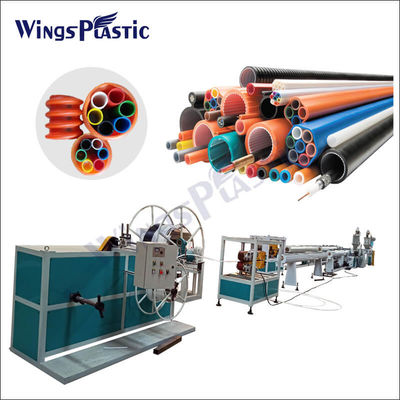

3.Name and model : SJ75 HDPE micro-duct bundling pipe extrusion line
Output: Max 160 ± 10%Kg/h;
Environment: Indoor, humidity 0.85, no condensation point, temperature≤40℃;
Power supply: 380V 50HZ, 3-phase 4wires; Install power ≤110KW;
Circulation water flow: 6-8.0m3/h;
Compressed air: 0.6-0.7Mpa.
Operation direction of production line is from right to left direction;
Core height of production line is 1100mm;
Install space: 35.0m x 3.5m x 3.5m (length x width x height);
Color of machine: RAL 7035; Or according to client appointed color.


Specifications of TUBE
Raw material: HDPE granule;
Size of pipe: OD 10-63mm
