PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine

PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine
PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine

Large Image :  PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-25000 per set
Packaging Details: woode case and container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

PPR Pipe Production Line PPR Pipe Making Machine Single Screw Extruder Machine

Description
Screw Material: 38CrMoAlA Screw L/D Ratio: 33:1
Raw Material: PP PE Granules Inverter: Delta Brand
Contactor: Siemens Contactor Switch: CHNT
Screw Speed: 94 Rpm Screw Diameter: 65mm
Temperature Controller: Omron Brand Application: Pipe
High Light:

Single Screw Pipe Production Line

,

PPR Making Machine Pipe Production Line

,

Single Screw PPR Pipe Production Line

PE pipe extrusion line application description:
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.

Characteristics PE pipe extrusion line :
1. Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
2. Diameter: from 16 to 800mm
3. Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate

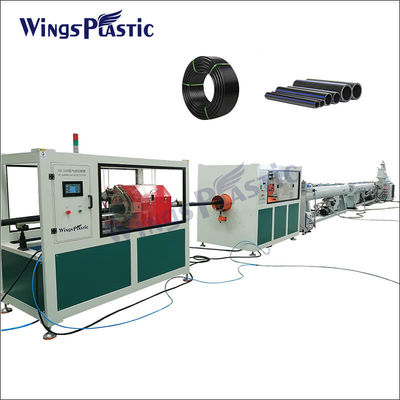

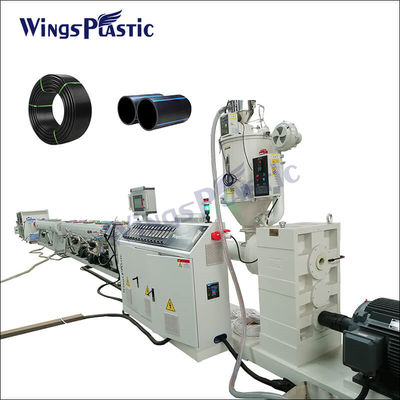

Flow chart of PE pipe extrusion line :
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder
→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
