PE Pipe Extrusion Machine Line Plastic Pe Pipe Production Line Plastic Pe Ppr Pipe Making Machine

Production Flow of Pipe Production Line:

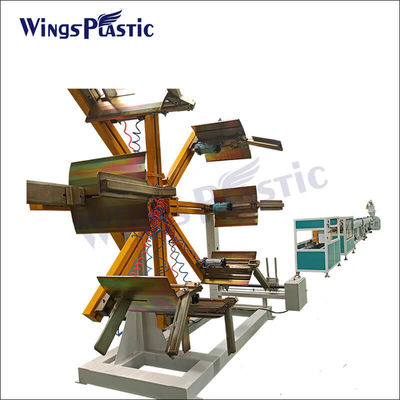

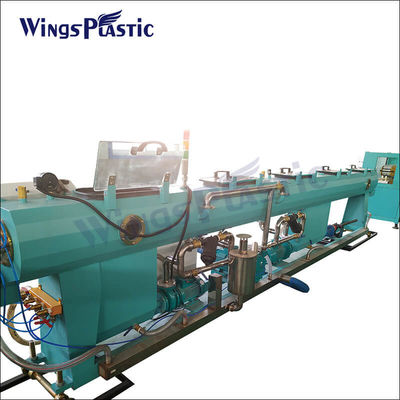

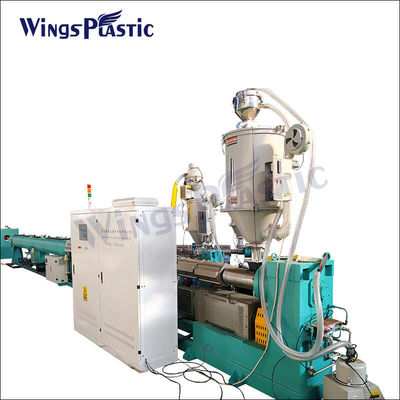

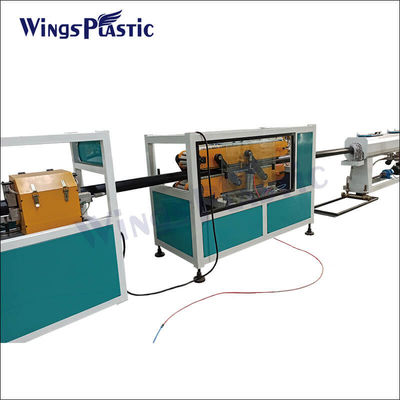

Hopper Dryer →Single Screw Extruder →Extrusion Mould → Co-extruder→Vacuum Calibration Cooling Tank →Spray Cooling Tank → Haul-off Unit →Cutter →Stacker or Coiler

Features of Pipe Machine:
1- 25m/min of maximum lineal extrusionspeed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-3 layers.
2- Unique design (barrier,shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
3- High torque gear box has a smart figuration, compact construction, low noise, high
carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
4- PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe
surface;
5- Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
6-Chip-free cutter ensuing flat and smooth cutting surface of pipe.
