Product Details:
|
| Screw Material: | 38CrMoAlA | Screw L/D Ratio: | 33:1 |
|---|---|---|---|
| Raw Material: | PP PE Granules | Inverter: | Delta Brand |
| Contactor: | Siemens Contactor | Switch: | CHNT |
| Screw Speed: | 94 Rpm | Screw Diameter: | 65mm |
| Temperature Controller: | Omron Brand | Application: | Pipe |
| Highlight: | Ppr Hdpe Pipe Making Machine,94 Rpm Hdpe Pipe Extrusion Machine,94 Rpm Ppr Tube Machine |
||

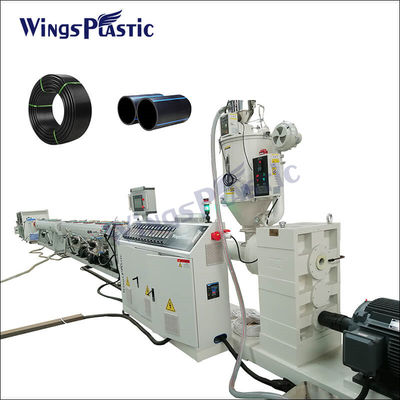

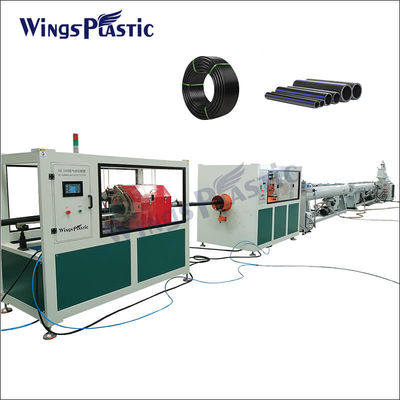

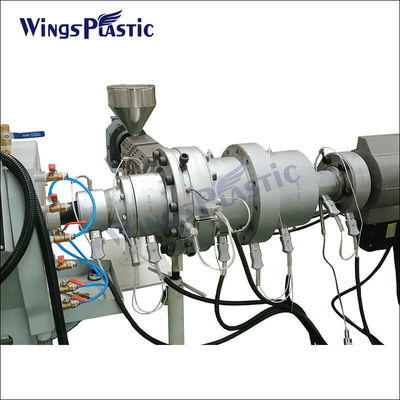

PE Pipe Extrusion Machine is mainly used for producing agricultural irrigation pipes, drainage pipes, gas pipes, water supplying pipes , cable conduit pipes etc.
>>The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes .
>>Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
>>Process Flow: Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
